# Last updated: 2023-02-03
# AlmaLinux SBOM User Guide
# Introduction
# About SBOM
SBOM (Software Bill of Materials) is a list of all open-source and third-party components used in a codebase, along with their licensing information, version numbers, and any known vulnerabilities.
AlmaLinux Build System (opens new window) has implemented SBOM into its pipeline for security purposes, such as tracing the build process, ensuring that only trusted sources are used, and reducing the risk of data corruption.
# About CAS
The Codenotary Community Attestation Service (CAS) (opens new window) is integrated with AlmaLinux to provide a chain of trust and traceability. Each stage of the build process goes through authentication and notarization, and build artifacts are only stored if they pass authentication via CAS.
A user can use CAS to authenticate a downloaded package or its cryptographic hash (SHA256 digest) to verify if it is notarized and trusted.
# Working with SBOM
To access the CAS information for AlmaLinux you need an internet connection as the CAS records are stored in the AlmaLinux git repository. You also need to install the CAS tool package.
Finally, to be able to inspect a desired package for SBOM information, you need the package itself (.rpm binary). Alternatively, you can use the package build-id or rpm-package-hash found on the AlmaLinux build (opens new window) page.
# Supported releases
- AlmaLinux 8.7
- AlmaLinux 9.1
# Install guide
# Software Prerequisites
To just query the SBOM records (versus creating them) one needs only to install the above mentioned cas tool. The CAS organization provides it in form of source and binary package(s) via their github (opens new window) and official web service
In the README.md (opens new window) you can find a cross-platform installation method, presented below.
# Installation
# Official CAS installation method (Linux®, macOS)
bash <(curl https://getcas.codenotary.io -L)
For Windows check a dedicated section, below.
# Example on macOS
TIP
The output as shown for macOS is identical on Linux. An alternative install method for Linux is described below.
Warning: the directory you wish to install to needs to exist before running install command. This is relevant if you're not installing to a system directory like /usr/local/bin but to a custom path, like in the example.
# Install:
➜ /tmp mkdir ./cas-test
➜ /tmp bash <(curl https://getcas.codenotary.io -L)
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 2449 100 2449 0 0 17566 0 --:--:-- --:--:-- --:--:-- 18838
Latest available release for cas is: v1.0.3
Downloading cas...
Install location [default: /usr/local/bin]: /tmp/cas-test
cas version v1.0.3 has been installed to:
• /tmp/cas-test/cas
🎉Done
You can now use the community attestation service (https://cas.codenotary.com) by running: $ cas
To get started set your API key you received by email and login: $ export CAS_API_KEY=<your API_KEY>; cas login
You can find the online documentation here: https://github.com/codenotary/cas
➜ /tmp
# Test run:
➜ /tmp ./cas-test/cas
Usage:
cas [command]
Available Commands:
authenticate Authenticate assets against CAS
bom Collect BOM information
completion Generate the autocompletion script for the specified shell
help Help about any command
inspect Returns the asset history with low-level information
list Returns the history of operations made with API key
login Log in to Community Attestation Service
logout Logout the current user
notarize Notarize an asset onto Community Attestation Service
unsupport Unsupport an asset
untrust Untrust an asset
Flags:
--caspath string config files (default is user home directory)
-h, --help help for cas
-o, --output string output format, one of: --output=json|--output=''
-S, --silent silent mode, don't show progress spinner, but it will still output the result
--verbose if true, print additional information
-v, --version version for cas
Use "cas [command] --help" for more information about a command.
# Example on Windows
# Install:
For Windows users, download your cas tool binary here (opens new window).
# Test run:
Run the .exe file from the command line:
C:\Users\auser>cas-v1.0.3-windows-amd64.exe help
Usage:
cas [command]
Available Commands:
authenticate Authenticate assets against CAS
bom Collect BOM information
completion Generate the autocompletion script for the specified shell
help Help about any command
inspect Returns the asset history with low-level information
list Returns the history of operations made with API key
login Log in to Community Attestation Service
logout Logout the current user
notarize Notarize an asset onto Community Attestation Service
unsupport Unsupport an asset
untrust Untrust an asset
Flags:
--caspath string config files (default is user home directory)
-h, --help help for cas
-o, --output string output format, one of: --output=json|--output=''
-S, --silent silent mode, don't show progress spinner, but it will still output the result
--verbose if true, print additional information
-v, --version version for cas
Use "cas [command] --help" for more information about a command.
# Alternative installation method for AlmaLinux systems
An alternative to Official CAS installation method is to install the CAS tool package from the AlmaLinux repository. This will (obviously) work exclusively on the AlmaLinux system.
TIP
The CAS package is available in AlmaLinux Architect's COPR (Community Owned Package Repository). Here, we install it on system based on AlmaLinux 9.1 (opens new window) release.
# 1. Enable the COPR repo for codenotary package
$ sudo dnf copr --hub build.almalinux.org enable andrewlukoshko/codenotary
# Expected output:
[almalinux_user@demohost ~]$ sudo dnf copr --hub build.almalinux.org enable andrewlukoshko/codenotary
Enabling a Copr repository. Please note that this repository is not part
of the main distribution, and quality may vary.
The Fedora Project does not exercise any power over the contents of
this repository beyond the rules outlined in the Copr FAQ at
<https://docs.pagure.org/copr.copr/user_documentation.html#what-i-can-build-in-copr>,
and packages are not held to any quality or security level.
Please do not file bug reports about these packages in Fedora
Bugzilla. In case of problems, contact the owner of this repository.
Do you really want to enable build.almalinux.org/andrewlukoshko/codenotary? [y/N]: y
Repository successfully enabled.
[almalinux_user@demohost ~]$
# 2. Perform the actual installation step:
$ sudo dnf install cas
# Expected output:
[almalinux_user@demohost ~]$ sudo dnf install cas
Copr repo for codenotary x86_64 owned by andrewlukoshko 891 B/s | 1.2 kB 00:01
Dependencies resolved.
==============================================================================================================================
Package Architecture Version Repository Size
==============================================================================================================================
Installing:
cas x86_64 1.0.3-1.el9 copr:build.almalinux.org:andrewlukoshko:codenotary 5.4 M
Transaction Summary
==============================================================================================================================
Install 1 Package
Total download size: 5.4 M
Installed size: 19 M
Is this ok [y/N]: y
Downloading Packages:
cas-1.0.3-1.el9.x86_64.rpm 493 kB/s | 5.4 MB 00:11
------------------------------------------------------------------------------------------------------------------------------
Total 493 kB/s | 5.4 MB 00:11
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : cas-1.0.3-1.el9.x86_64 1/1
Running scriptlet: cas-1.0.3-1.el9.x86_64 1/1
Verifying : cas-1.0.3-1.el9.x86_64 1/1
Installed:
cas-1.0.3-1.el9.x86_64
Complete!
[almalinux_user@demohost ~]$
PREP DONE: At this point your system is ready to work with AlmaLinux SBOM infrastructure!
# Using Guide
Authenticate SBOM on packages - definition:
Authentication - matches the hash of a local asset to a hash on CAS. In case of AlmaLinux the local asset is an RPM binary package.
There are a few ways to authenticate the package:
- Authenticate by package binary file
- Authenticate with manually calculated
rpm-package-hash - Authenticate with
rpm-package-hashfrom AlmaLinux Build System
TIP
Note: The cas program is a command line tool with a unified interface across all three platforms (Linux®, macOS, Windows); Therefore, the commands shown in the section below can be used on all supported platforms.
# Authenticate by package binary file
# Get the package
To examine a package from the repo you should first get the URL.
TIP
The package we selected for this demo was: kernel-5.14.0-162.12.1.el9_1.x86_64.rpm
URL:
http://repo.almalinux.org/almalinux/9.1/BaseOS/x86_64/os/Packages/kernel-5.14.0-162.12.1.el9_1.x86_64.rpm
# Use curl to get the package:
curl http://repo.almalinux.org/almalinux/9.1/BaseOS/x86_64/os/Packages/kernel-5.14.0-162.12.1.el9_1.x86_64.rpm -o kernel-5.14.0-162.12.1.el9_1.x86_64.rpm
# Authentication using the CAS tool
Use the downloaded package file (path) as a parameter for the cas command:
cas authenticate --signerID=cloud-infra@almalinux.org kernel-5.14.0-162.12.1.el9_1.x86_64.rpm
# Live example
CONGRATULATIONS! You have just authenticated a package with the cas CLI tool!
# Authenticate with manually calculated rpm-package-hash
You can also calculate package hash manually from CLI.
Assuming here, you have the package already. If not please refer to "Get the package" above.
To get the rpm-package-hash you just need to calculate sha256sum:
PKG_FILE=kernel-5.14.0-162.12.1.el9_1.x86_64.rpm
SUM=$(sha256sum $PKG_FILE)
HASH=${SUM%%\ *rpm}
# Authentication using the CAS tool
Use the calculated hash as value for parameter --hash in the cas tool invocation:
cas authenticate --signerID=cloud-infra@almalinux.org --hash $HASH
# Live example
The whole process as described above should look like:
CONGRATULATIONS! You have just authenticated a package with the cas CLI tool!
# Get rpm-package-hash (or package) from AlmaLinux Build System
Alternatively, you can get rpm-package-has (and package binary, of course) from the build site.
# 1. Navigate your browser https://build.almalinux.org/
# 2. Search for a desired package (build) by name, in the example we look for kernel:
TIP
To open the search tab click on the magnifying glass icon in the right top corner.
TIP
Naturally, you can narrow the search by supplying more parameters to the filter.
TIP
More info about working with the build-system page: AlmaLinux Build System User Guide | the build feedscreen (opens new window)

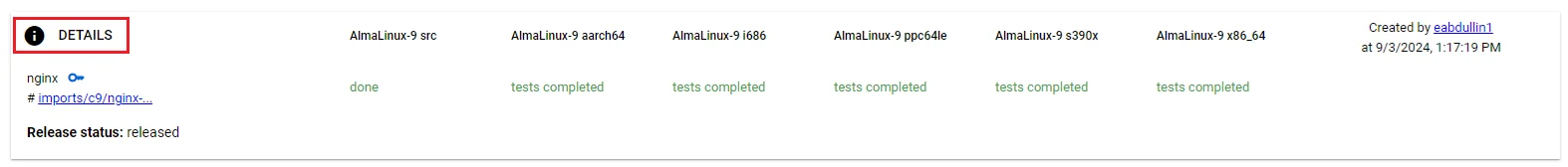

# 3. Click the ⓘ Details on the selected entry (here: top one) you will get the build summary:
# 4. Select the architecture of the package build by clicking the corresponding tab
# Here x86_64 was selected:

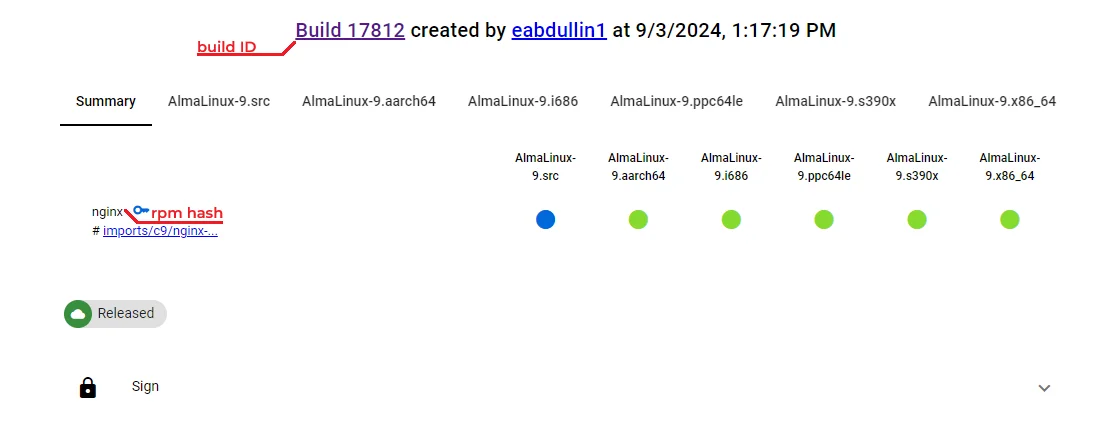

# 5. Hover your mouse over the blue key icon to reveal the rpm-package-hash:
# Click to copy it to the clipboard:
TIP
You can download the package binary by clicking on the link with its name.
# Authentication using a hash obtained from Build Service
TIP
The command is the same as above, here just shows output in form of a static picture.
Call the cas tool providing the copied rpm-package-hash as --hash parameter value:
cas authenticate --signerID=cloud-infra@almalinux.org --hash ed061fab17b8f269d5fd421a14d0ec81ce5dc357a3ebffe33b5bd2a75e9dd704
# Example output:
[almalinux_user@demohost ~]$ cas authenticate --signerID=cloud-infra@almalinux.org --hash ed061fab17b8f269d5fd421a14d0ec81ce5dc357a3ebffe33b5bd2a75e9dd704
CAS saved locally the trusted public key
CAS automatically trusted the signature found on current connection
UID: 1674560717775452939
Kind: file
Name: kernel-5.14.0-162.12.1.el9_1.src.rpm
Hash: ed061fab17b8f269d5fd421a14d0ec81ce5dc357a3ebffe33b5bd2a75e9dd704
Size: 137 MB
Timestamp: 2023-01-24 11:45:17.775452939 +0000 UTC
ContentType: application/x-rpm
Metadata: build_arch="i686"
epoch="None"
release="162.12.1.el9_1"
sourcerpm="None"
arch="noarch"
build_host="x64-builder02.almalinux.org"
git_ref="changed/a9/kernel-5.14.0-162.12.1.el9_1.alma"
alma_commit_sbom_hash="ef90a8252e33e09860be86482f5c8c9d932392e360a828ee8e0a58cdbc451804"
git_url="https://git.almalinux.org/rpms/kernel.git"
version="5.14.0"
source_type="git"
build_id="5657"
built_by="eabdullin1 \u003c55892454+eabdullin1@users.noreply.github.com\u003e"
git_commit="dec6aca7a2b4f5a5b59e6b10efde21e47fda9827"
name="kernel"
sbom_api="0.2"
SignerID: Y2xvdWQtaW5mcmFAYWxtYWxpbnV4Lm9yZw==
Apikey revoked: no
Status: TRUSTED
